(치수 : mm)
No.
Type

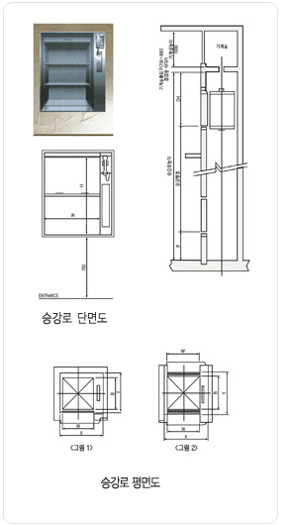

Fig.
Capacity
(kg)
Speed
(m/min)
Door type
Open
ing
car size
Hoistway
dimension
OHI
(over head)
P
(Pit)
power
(kw)
Door
car door
WxH
B-
깊이
X-
너비
Y
car door
(유)
car door
(무)
car door
(유)
car door
(무)
1
table type
DWT
-50S
-20
1
50
20
2매
door
상하
개폐
2매
door
상하
개폐
550
x
700
550
980
700
740
1285
1475
750
0.75
2
DWT
-50D
-20
2
780
3
DWT
-75S
-20
1
75
600
x
800
600
1030
750
790
1360
1550
4
DWT
-75D
-20
2
830
5
DWT
-100S
-20
1
100
700
x
900
700
1130
850
890
1510
1700
1.5
6
DWT
-100D
-20
2
930
7
DWT
-150S
-20
1
150
800
x
1000
800
1230
980
990
1660
1850
8
DWT
-150D
-20
2
1030
9
floor type
DWT
-200S
-30
1
200
30
2매
door
상하
개폐
또는
1매 door
상개폐
안정봉
또는
1매
door
상개폐
800
x
1200
1000
1260
1190
최상층
출입구가 1매
door일때 : 2560
최상층
출입구가 2매 door 일때 : 2250
최상층
출입구가 1매 door 일때 : 300
최상층 출입구가 2매 door 일때 : 690
2.2
10
DWT
-200D
-30
2
1230
11
DWT
-300S
-30
1
300
850
x
1200
1150
1310
1340
12
DWT
-300D
-30
2
1380
